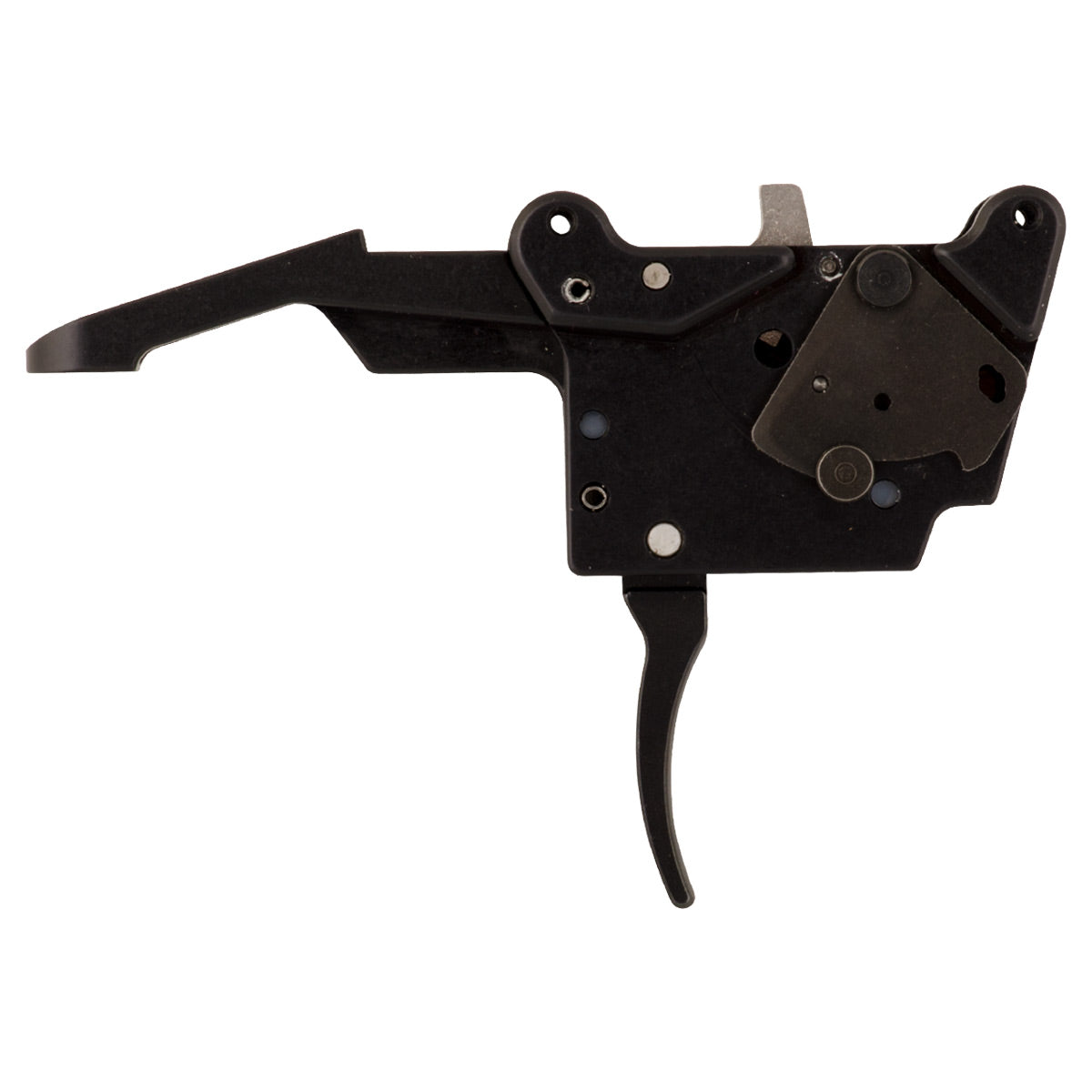

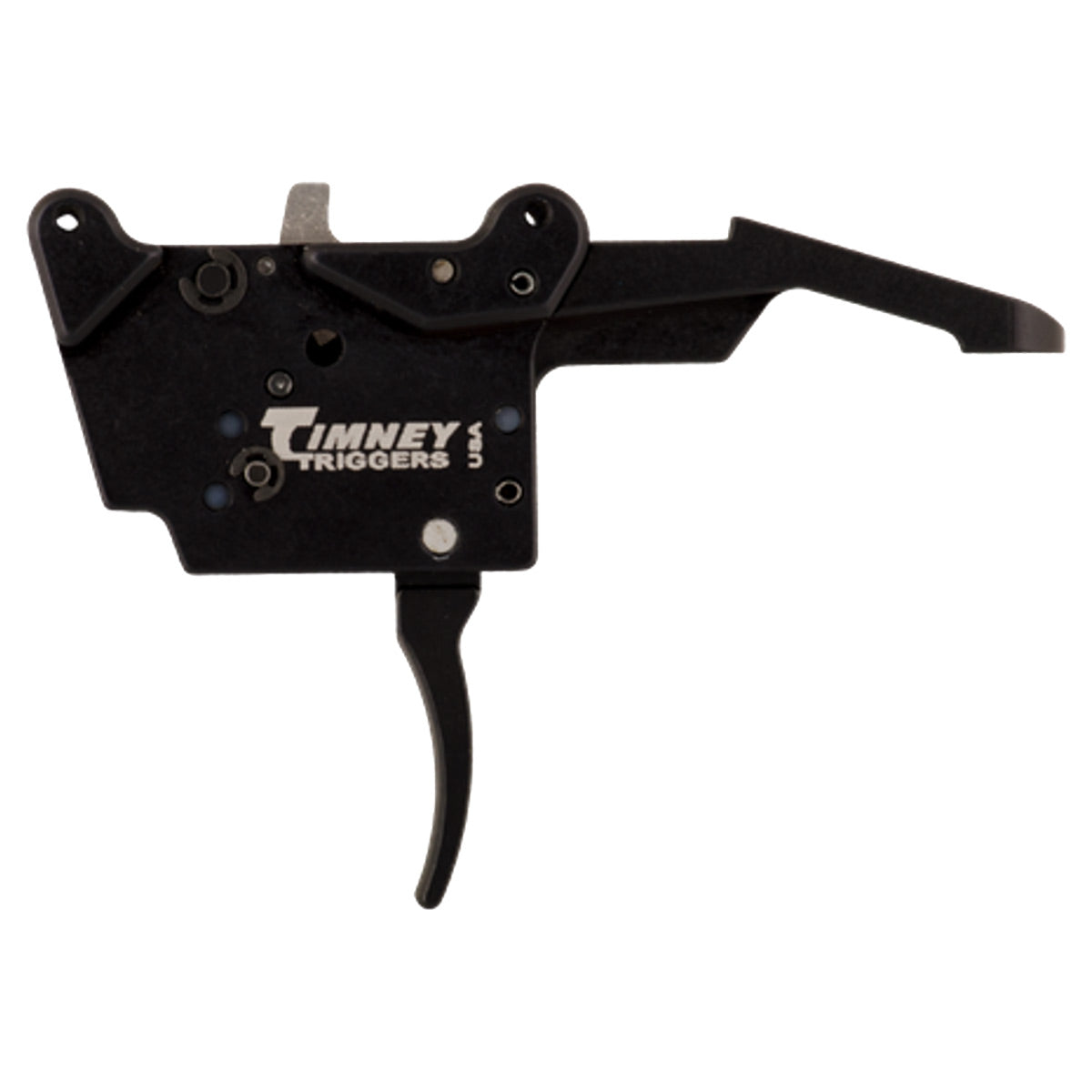

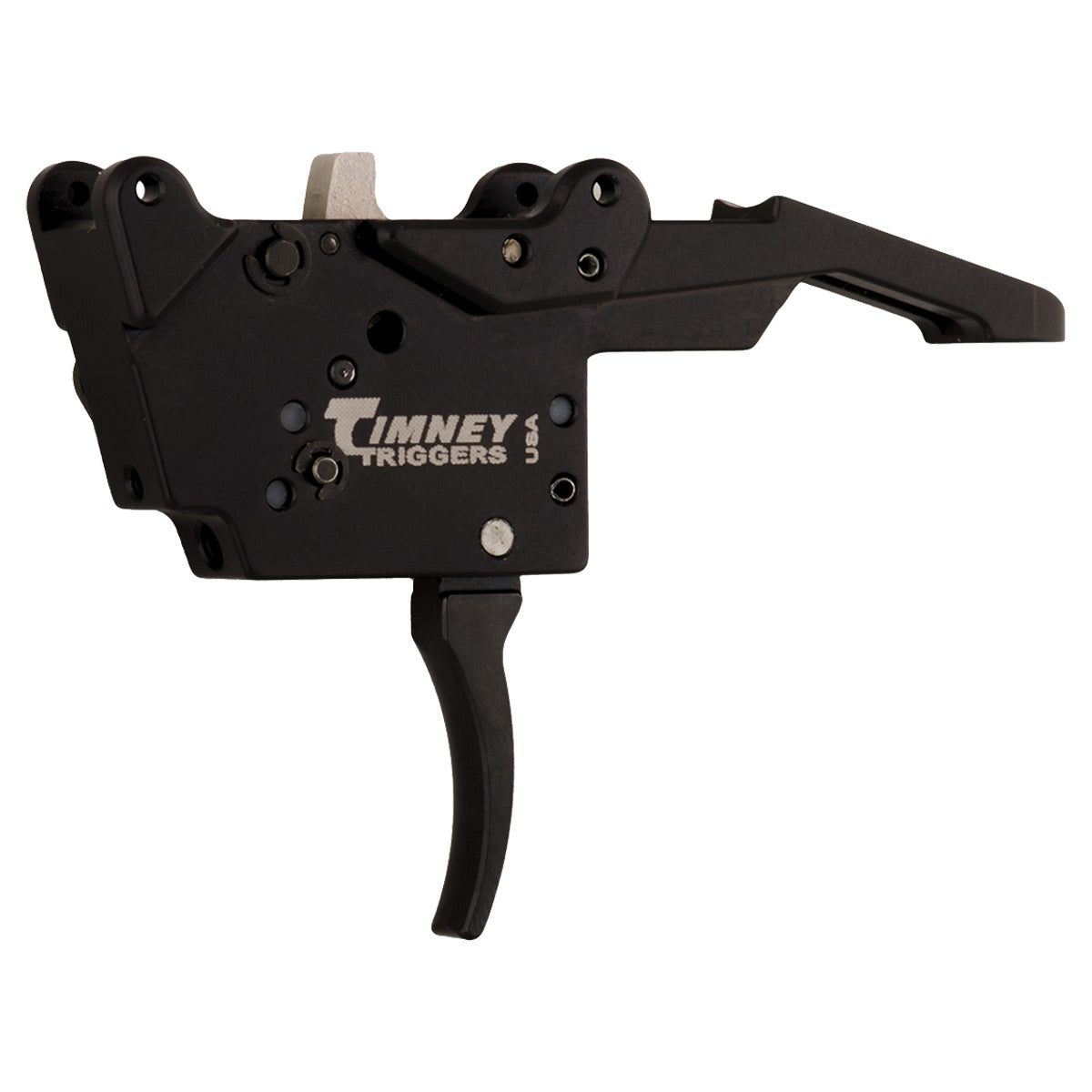

Timney Triggers Browning X-Bolt Trigger

The Timney Triggers Browning X-Bolt Trigger is a true drop-in replacement trigger that gives you a crisp, clean break allowing you to be your most accurate self with your rifle.

10

Points
Regular price $212.99
Sale price $212.99 Regular price
% off Sold out

only 6 left in stock

Why we like this product

  • Fully adjustable for sear engagement (creep), Overtravel ( Follow through), and pull weight
  • Very easy install so no gunsmith is needed
  • Adjustable for that perfect custom feel
  • Compatible with 11 different X-Bolt models

**Depending on which stock you have on your rifle, it may be necessary to remove a small amount of material to give the safety transfer bar adequate clearance.

**When this Timney trigger is installed, the factory bolt lock feature (i.e. Bolt will not open when on 'Safe') is DISABLED allowing the bolt to open while the rifle is on 'Safe'.

Timney is the market leader in true drop-in replacement triggers due to its precision engineering. This drop-in trigger gives a crisp, clean break every time for repeatable accuracy shot after shot. From the factory, the trigger is set to 3 lbs and can be adjusted from 1.5 lbs – 4 lbs. With Sear engagement technology and the ease of adjustment with a single hex wrench, this trigger is truly something that hunters and firearm enthusiasts need. This trigger also features adjustable Overtravel (follow-through) giving you complete control of how the trigger functions.

The Timney Browning X-Bolt Trigger is fully adjustable for Sear Engagement (Creep), Overtravel (Follow-through) and pull weight. Adjustment of the pull weight is completed by turning the pull weight screw with a 5/64 hex Wrench. Adjustment of the sear engagement and overtravel is completed using a .050 hex Wrench.

Sear Engagement:
Sear engagement controls the amount of movement the trigger has before it breaks. Sear engagement is custom set at the Timney Factory and shouldn't need adjustment. However, if you want to adjust your triggers sear engagement (Creep) the procedure is as follows:

With the rifle unloaded and cocked. Engage safety. Turn the sear engagement screw clockwise until it stops. Slowly turn it counterclockwise 1/8 of a turn or one flat of the .050 hex wrench. The safety should move freely but the trigger should not move when the safety is engaged.

Overtravel:
Overtravel (Follow Through) is the distance the trigger moves after it fires. Timney Triggers adjust the overtravel to factory specifications but overtravel is a matter of preference and can be increased or decreased to match your choice. The over-travel screw is on the front of the housing just above the pull-weight screw. With the trigger in the fired position and using a .050 hex wrench, turn the screw clockwise until it stops. Once the screw stops, turn the screw counterclockwise 1/8 of a turn or one flat of the hex wrench. Squeeze the trigger as you turn the screw to the desired amount of follow-through. BE CAREFUL if the overtravel is set too tight the trigger will not fire.

Pull Weight:
Pull weight is controlled by the bottom screw on the front of the housing. Using a 5/64 hex wrench turn the screw clockwise to increase the pull weight or counterclockwise to decrease the pull weight. From the factory, the pull weight is set at 3 lbs.

Weight 2.1 oz
Adjustable Trigger  Yes
Trigger Pull 1.5 lbs - 4 lbs
Style Curved
Material Steel
Finish Black
Compatible With First Generation X-Bolt (Not X-Bolt 2)
Manufacturer Warranty Lifetime warranty
