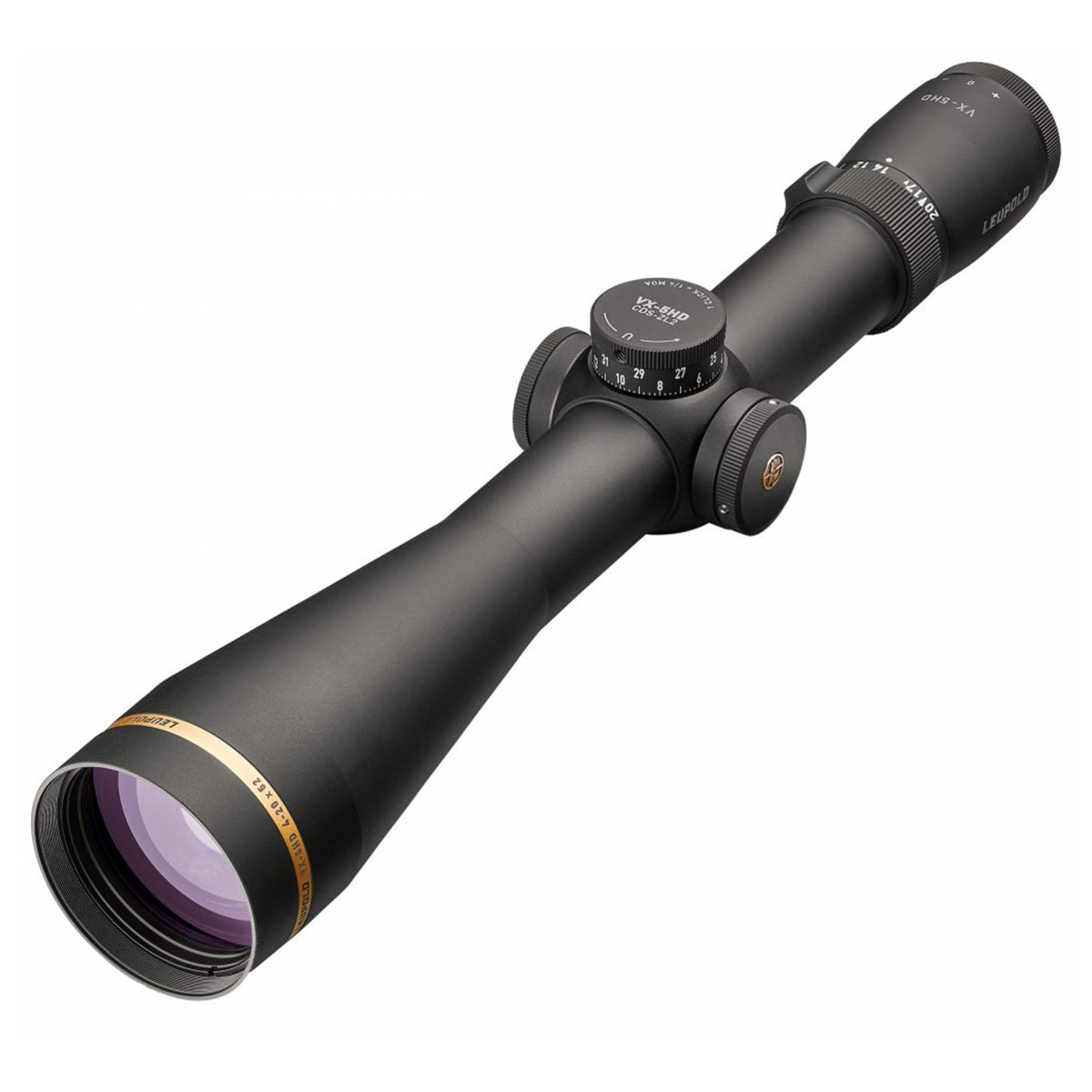

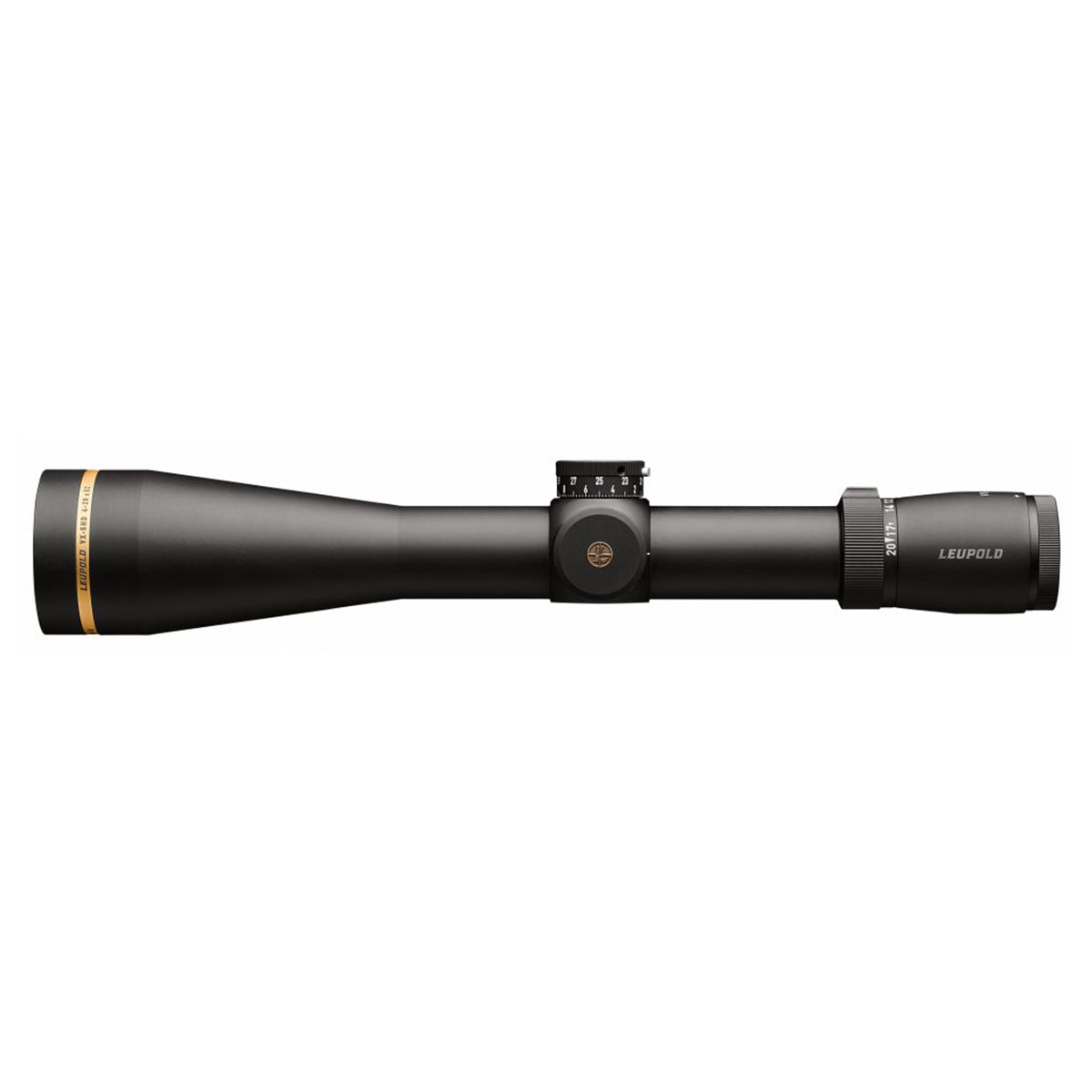

Leupold VX-5HD 4-20x52 CDS-ZL2 Duplex 171701
Couldn't load pickup availability
GOHUNT Highlights
-
Low enough magnification to get the job done in densely wooded areas but has the horsepower at the top-end to make accurate shots at long range distances
-
Rugged and reliable, the VX-5HD is ready for your next adventure
-
HD glass and 110 MOA of adjustment
Manufacture highlights
-
A 34 mm maintube produces unparalleled windage and elevation adjustment travel
-
The Twilight Max HD Light Management System, it’s purpose-built for the toughest lighting conditions
-
Eliminates accidental dial movement with the push-button ZeroLock system while providing two revolutions of adjustment
-
Brings the reticle into focus quickly with Fast-Focus eyepiece
-
Sheds dirt and water for clear, crisp images with the Guard-ion lens coating
-
Extreme Military-Standard scratch resistance for added protection
-
Absolute waterproof and fog proof integrity means it's ready to perform in the field, in all conditions
-
Warranty - Lifetime
Breakdown
The VX-5HD 4-20x52 is a great riflescope for hunting. The 4x magnification is low enough that you can get a wide field of view for close encounters and the 20x magnification is plenty for long-range shots. The VX-5 series has a High-Definition optical system for sharp clarity, and the Twilight Max™ Light Management System for great low-light performance, giving hunters a visible advantage at dawn and dusk when the game is on the move. The CDS-ZL2 (Custom Dial System ZeroLock 2) elevation dial locks in place so it cannot be inadvertently rotated off zero. A mere press of the button, which also acts as a revolution indicator, will allow the hunter to dial up two turns of elevation, if necessary.
**Leupold Part Number - 171701
Leupold Part Number | 171701 |
Magnification Range | 4 - 20x |
Objective Diameter | 52 mm |
Weight | 1 lb 7.3 oz |
Length | 14.7" |
Tube Diameter | 34 mm |
Reticle | Duplex |
Focal Plane | Second Focal Plane |
Internal Adjustment | 1/4 MOA |
Max Elevation Adjustment | 110 MOA |
Max Windage Adjustment | 110 MOA |
Field of View @ 100 yds | 28.4 - 7.7' |
Eye Relief | 3.8 - 3.7" |
Manufacturer Warranty | Lifetime |
